Hybrid 3 N55

3' F30 Saloon (Lim) ECE

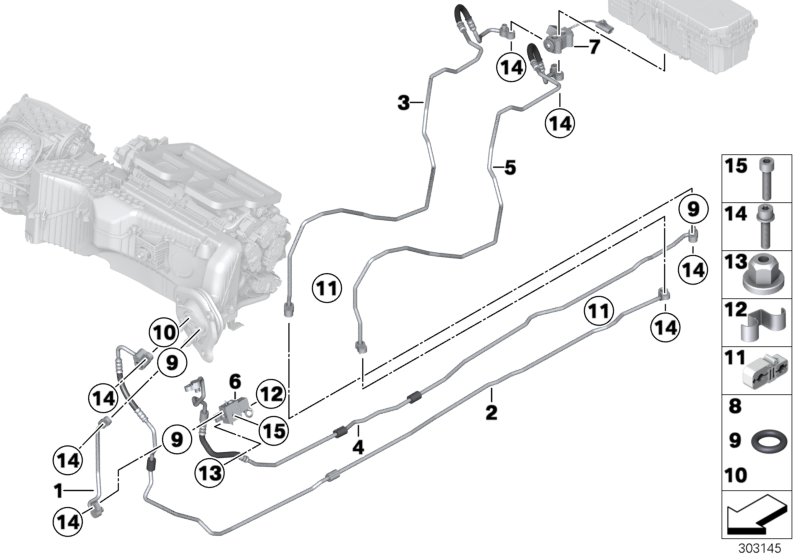

№ Description Extra info Condition Qty Part number
01 Pressure line, evaporator shutoff valve 1
64 53 9232464
02 Suction pipe 1
64 53 9232466
03 Pressure hose assy 1
64 53 9232462
04 Pressure hose assy 1
64 53 9232461
05 Suction pipe 1
64 53 9232467
06 Shut-off valve 2
64 53 9193577
07 Expansion valve 1
64 50 9263429
08 Gasket ring D=10,8 MM 1
64 50 8375741
09 Gasket ring 9,5X2,5 9
64 50 8374959
10 Gasket ring D=13,7 MM 2
64 53 8375742
11 Clip 1
64 53 9199883
12 Holder 1
64 53 9264395
13 Plastic nut M6 1
16 13 1176747
14 Isa screw with washer M6X25-U1 12
13 51 7632572
15 ISA screw M6X40 2
07 12 9903809
