530e B46X

5' G30 Saloon (Lim) USA

Options:

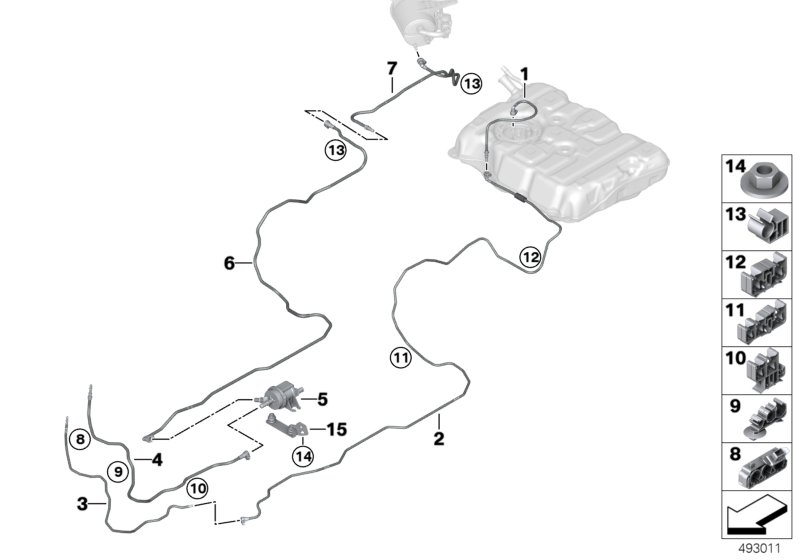

Fuel Pipe and Mounting Parts

№ Description Extra info Condition Qty Part number
01 Feed line, rear 1
16 12 7386647
02 Fuel feed line 1
16 13 7385537
03 Front fuel feed line 1
16 12 7411602
04 Scavenging line front 1
16 12 7429379
05 Insulation valve 1
16 13 7424007
06 Scavenge air line 1
16 12 7429326
07 Scavenging line rear 1
16 13 7393051
08 Clip D12 D12/D10 D10 1
16 12 7385405
09 Clip 2XD12 D10 D5 1
16 13 7384843
10 Clip D12 D10 D5 2
16 13 7385411
11 Line clip, double D10/D12 8
16 12 7397510
12 Clip 2XD10 3
16 13 7385409
13 Pipe clip D14 2
16 12 6766397
14 Hex nut chrome-free CR(VI) BM6-8-ZNNIV SI 2
07 12 9905411
15 Bracket isolation valve 1
16 13 7424006
