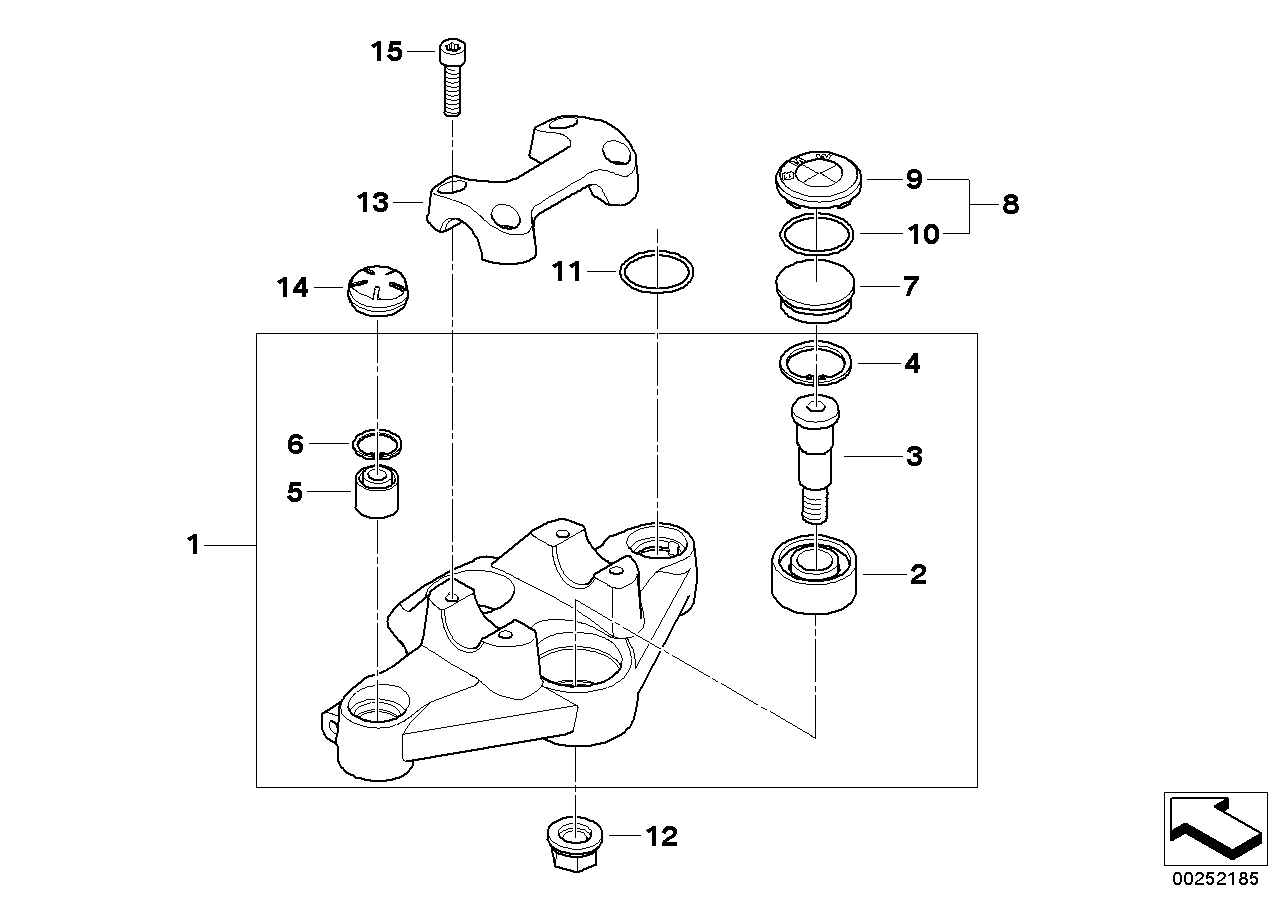

R 1200 R 11 (0400,0490)
K27 (R 1200 R) 无 (ohne) ECE
| № | 描述 | 另外 | 条件 | 金额 | 说明 | ||
|---|---|---|---|---|---|---|---|
| 01 | 前叉连接件 上部 | 1 | 31 42 7727249 | |||
| 02 | 角接触球轴承 | 47X20X20,6 | 1 | 31 42 2314723 | ||
| 03 | 承载轴销 | 1 | 31 42 7676129 | |||
| 04 | 防松环 | 1 | 31 42 2311989 | |||
| 05 | 万向节 | 2 | 31 42 2314135 | |||
| 06 | 卡环 | 26X1,2 | 2 | 31 42 2331942 | ||
| 07 | 饰盖 | 1 | 31 42 2314132 | |||
| 08 | 档位标识 | D=45MM | 1 | 31 42 7704591 | ||
| 08 | 徽标 90 年 | 1 | 31 42 8535451 | |||
| 09 | 档位标识 | D=45MM | 1 | 31 42 7708518 | ||
| 10 | O 形环 | 40X3 | 1 | 07 11 9906054 | ||
| 11 | O 形环 | 30X2,65-N-NBR70 | 1 | 07 11 9905179 | ||
| 12 | 带肩螺母 | M14X1,5 MK | 1 | 31 42 2330996 | ||
| 13 | 接触夹片 | 2 | 31 42 7727252 | |||
| 14 | 饰盖 | 2 | 31 42 7728083 |
