635CSi M30

6' E24 Coupé (Cou) JAP

Options:

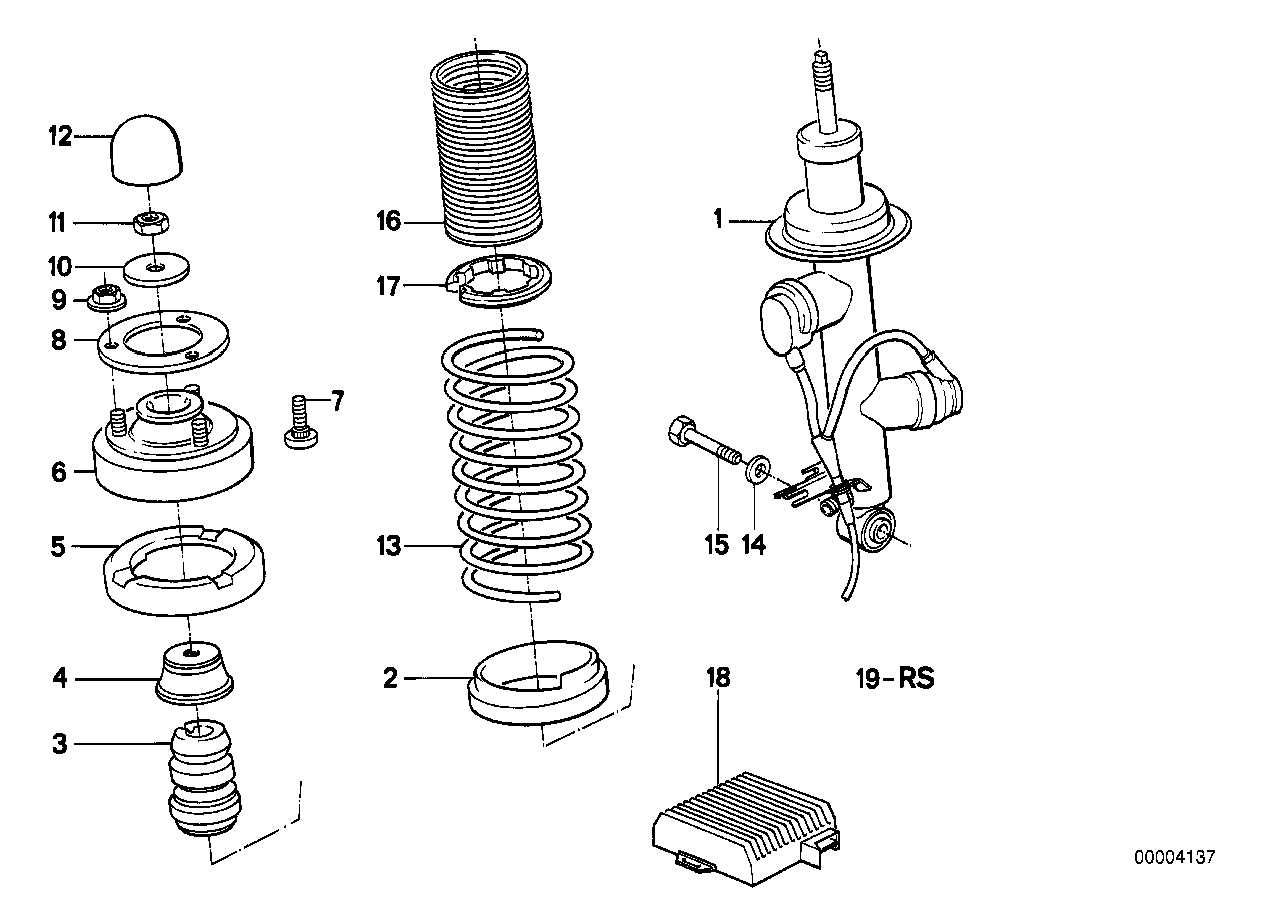

Rear spring strut EDC/ctrl unit/sensor

№ Description Extra info Condition Qty Part number
01 Shock absorber, rear left 1
37 12 1134363
01 Shock absorber, rear right 1
37 12 1134364
01 Shock absorber, rear left 1
37 12 1135237
01 Shock absorber, rear right 1
37 12 1135238
02 Spring pad lower 2
33 52 1131523
03 Damper 2
33 52 1134453
04 Support 2
37 12 1114729
05 Spring pad upper 2
33 53 1133048
06 Guide support 2
37 12 1129717
07 Pin M8X18 ZNS 2
31 33 1092886
07 Pin M8X18 ZNS3 2
31 33 6765744
08 Washer-gasket 2
33 52 1129567
09 Self-locking collar nut M8-8-ZNS till 1988 6
31 33 1092887
09 Self-locking collar nut chrome-free CR(VI) M8-8-ZNS3 till 1988 6
07 11 9904295
09 Self-locking collar nut chrome-free CR(VI) M8-10 ZNS3 6
07 11 9905374
10 Plate 2
37 12 1130122
11 Self-locking hex nut M12X1,5 2
31 31 1136641
11 Self-locking hex nut M12X1,5 05 till 1988 2
32 21 1095267
11 Self-locking hex nut M12X1.5-05 ZNS3 2
32 21 6769539
12 Protection cap 2
31 33 1134920
13 Coil spring 2
33 53 1134190
14 Washer 2
33 52 1125260
15 Hex Bolt M14X1,5X85 2
07 11 9914829
16 Rubber boot 2
37 12 1129716
17 Supporting ring 2
37 12 1134899
18 Control unit 1
37 14 1134203
