X1 25LeX B38X

X1 F49 SAV (SAV) CHN

Options:

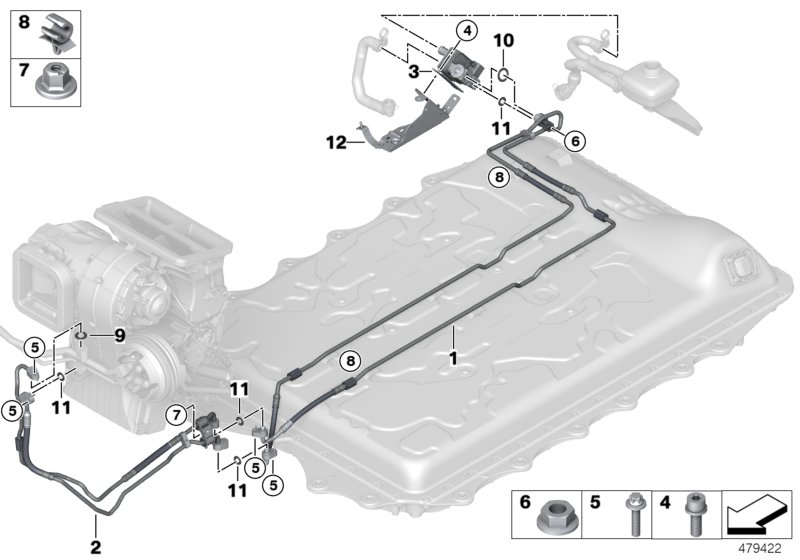

Refrigerant lines, underfloor

№ Description Extra info Condition Qty Part number
01 Refrigerant line, double pipe 1
64 50 9377852
02 Refrigerant line, double pipe 1
64 50 9377853
03 Chiller 1
64 50 9381823
04 Isa screw with washer ZNS3 chrome-free CR(VI) M6X18-U1-8.8 1
07 12 9904707
05 Hexalobular socket screw BM6 X 25 7
07 11 9908428
06 Hex nut chrome-free CR(VI) M6-8-ZNNIV SI 1
07 11 9905544
07 Plastic nut 2
07 14 7336362
08 Pipe clip D=10MM 2
64 53 9167145
09 Gasket ring D=11MM X
64 53 9284018
10 Gasket ring D=17MM X
64 53 9284019
11 Gasket ring D=8MM X
64 53 9284020
12 Counter support chiller 1
64 50 9378066
