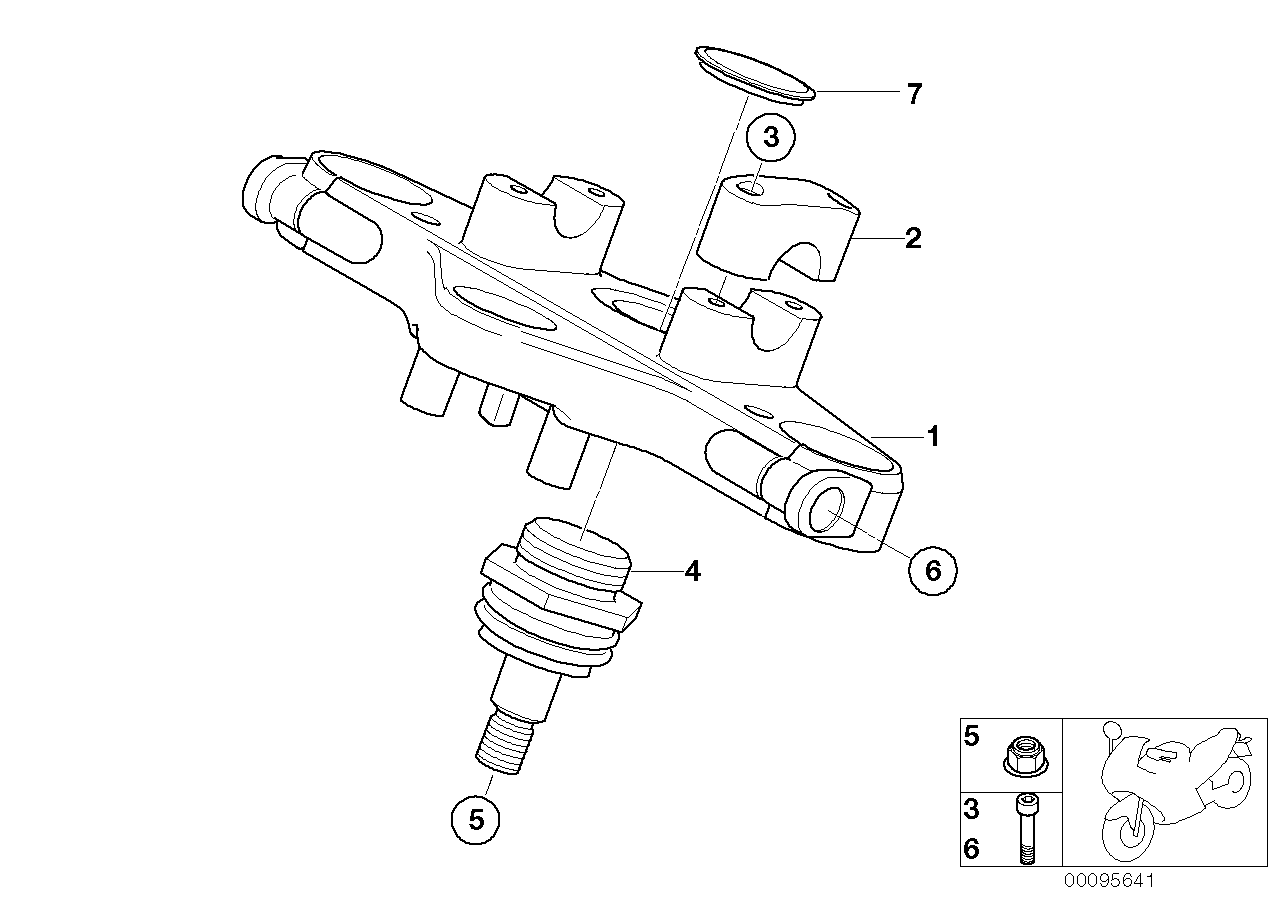

K 1200 RS 01 (0547,0557)
K41 (K 1200 GT, K 1200 RS) Without (ohne) ECE
For vehicles with
Authorities package X369AYes
and
Handlebar, high X611AYes
| № | Description | Extra info | Condition | Qty | Part number | ||
|---|---|---|---|---|---|---|---|
| 01 | Upper fork cross brace | 1 | 31 42 7663124 | |||
| 02 | Clamping support | 2 | 31 42 8522439 | |||
| 03 | Cheese-head screw, front | M8X30 | 4 | 31 42 7655776 |
| № | Description | Extra info | Condition | Qty | Part number | ||
|---|---|---|---|---|---|---|---|
| 04 | Ball joint | 0,4NM | 1 | 31 42 7681040 | ||
| 05 | Collar nut | M14X1,5 MK | 1 | 31 42 2330996 | ||
| 06 | Fillister head screw | M8X30 | 2 | 31 42 2312043 | ||
| 07 | Covering cap | 1 | 34 31 2332864 |
